China export automatic spray paint machine reciprocating Tunnel curing furnace production line
Overview
Inquiry
Related Products
- Whole factory plastic parts automatic dust coating equipment
- Whole plant metal products electrostatic coating equipment
- Whole factory furniture electrostatic coating equipment
- Whole plant locomotive, motorcycle coating equipment
- Manipulator, Spraying robot etc Industrial Robot equipment
- Automatic UV curing furnace line
- Fully automatic electrostatic dust removal equipment
- DISK automatic electrostatic coating equipment
- All kinds of Drying,silk-screen equipment
- All kinds of PVC/SUS belt,Nylon conveyor equipment
- Teflon/Ceramic powder /PE immersion high temperature equipment
- All kinds of Water Curtain Booth etc equipment
- High level Air Supply System
- Waste water/waste gas recycling system
- Whole plant electroplating coating equipment
- Whole factory electrophoresis coating equipment
High quality curing oven for powder coating
A. Instant drying; avoid drying waiting time, greatly reducing the coating process time.
B. It can be directly connected with the coating machine. The machine can be connected to the drum type or curtain coating machine. After coating, the finished product is directly dried, eliminating the trouble of handling.
C. Coating surface hardness increased, bright color.
D. Extensive drying function: wood, plywood, furniture, steel, building materials, lenses, leather and other UV coating after drying.
Product Specification:
|
No. |
Item |
Specification |
|
A |
The size |
Size:L2500 × W690(Effective width) x H800mm(Qty:1pcs ) |
|
1 |
The racks |
The body,foot of equipment is made of welding steel box section. The foot stool is equipped with M14 adjustable foot cup. the steering wheel is equipped. |
|
2 |
The Conveyor Belt |
The belt height to the ground is 0.8 meters. The width of steel mesh belt is 690mm, the circle length is 5 meters. The length of feeding area is 500mm,the effective height is 250mm, which is adjustable. |
|
3 |
Motor |
The motor use 60W electronic speed regulating motor. the line speed is adjusted Taiwan ZONCN frequency transformer. 1-6m/min, Energy-saving power. |
|
4 |
Surface treatment |
Computer white electrostatic powder coating,hard wear and scratch resistant |
|
B |
Drying furnace cover |
The heating area size is L1200mm×W700mm×H550mm. |
|
1 |
UV Lamp |
It uses 3pcs 3KW UV lamps with transformer and capacitance. Each lamps has three choose: strong,medium,week. The lamps use the Beijing halogen tube with the reflector,tube,trigger. |
|
2 |
The Wind Motor |
It use one set of professional 1.1KW 380V,1400R/min high speed centrifugal fans. The volume of air is 1200m3/hours. 1 set. The inner is equipped with the exhaust pipe which can reduce the temperature of product and the inner of furnace,improve the service time of the lamp. |
|
3 |
Electronic Controller |
The transformer of UV lamps is equipped with the energy storage capacitance. Each UV lamp is equipped with a time timer to record the usage.The temperature-controller uses the Taiwan Berme digital display temperature controller. |

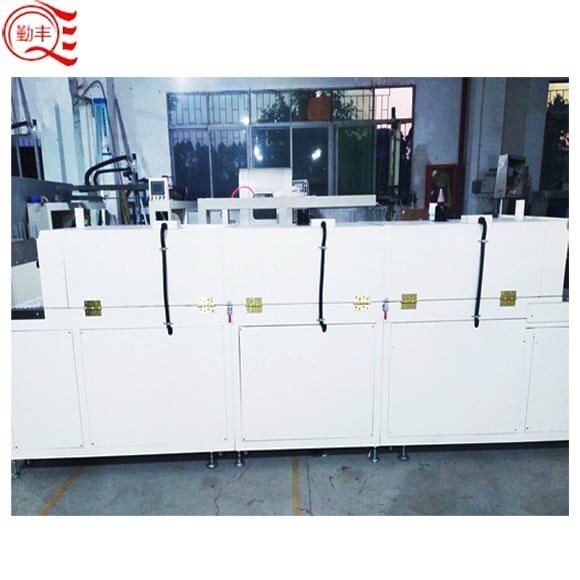

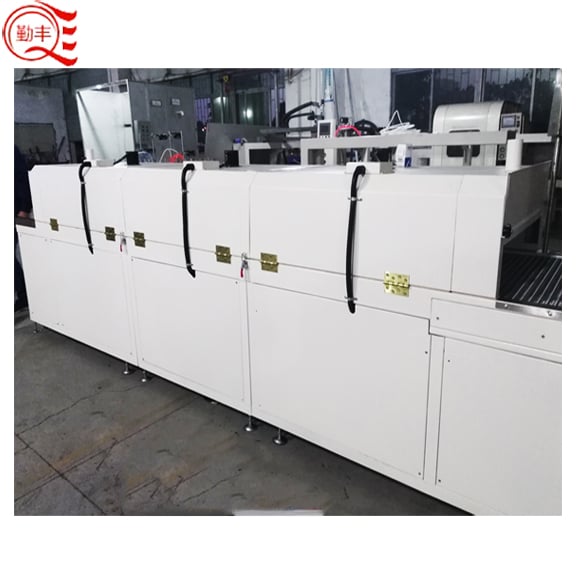

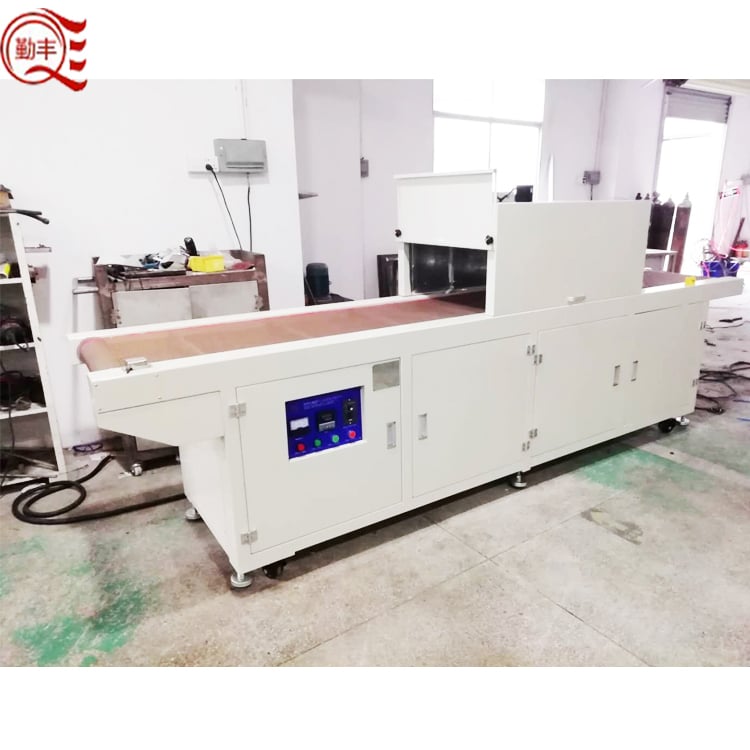

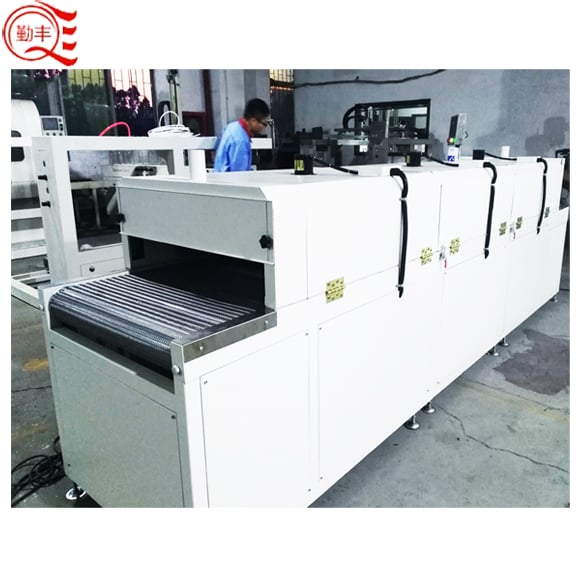

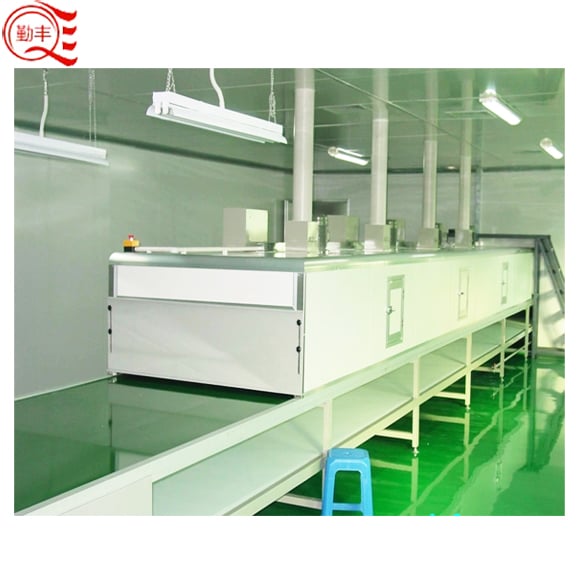

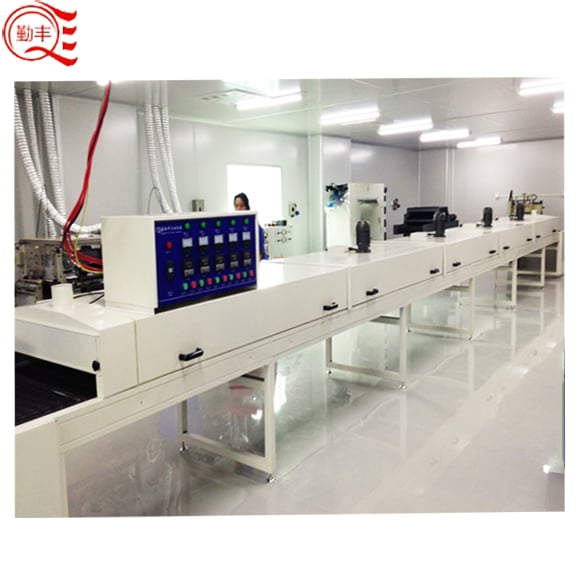

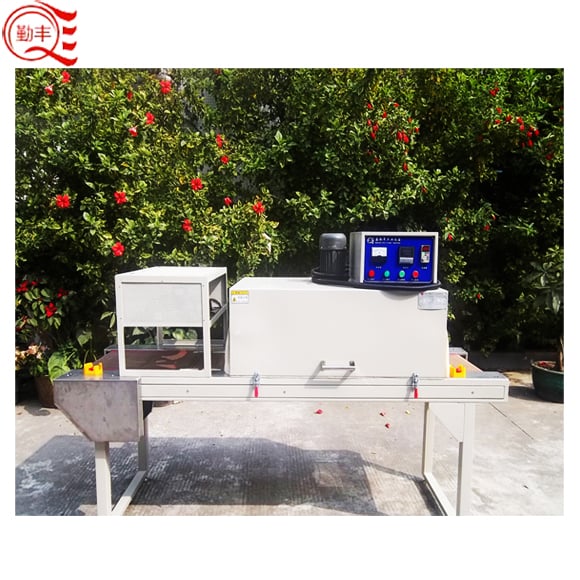

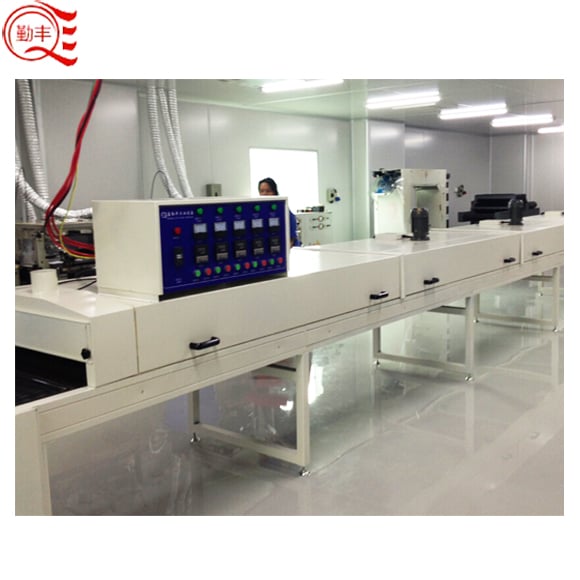

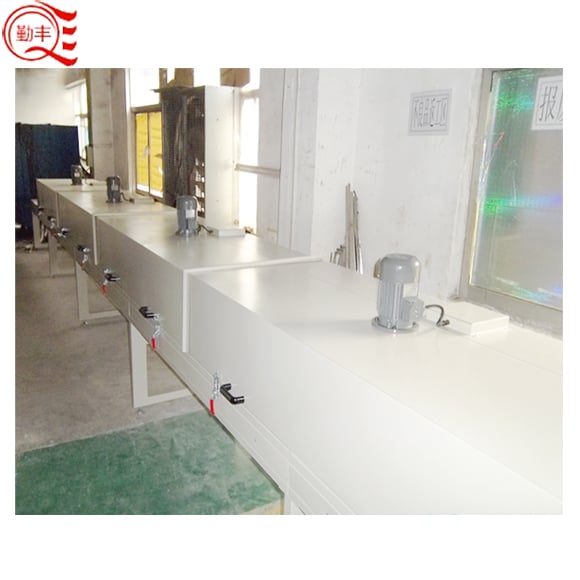

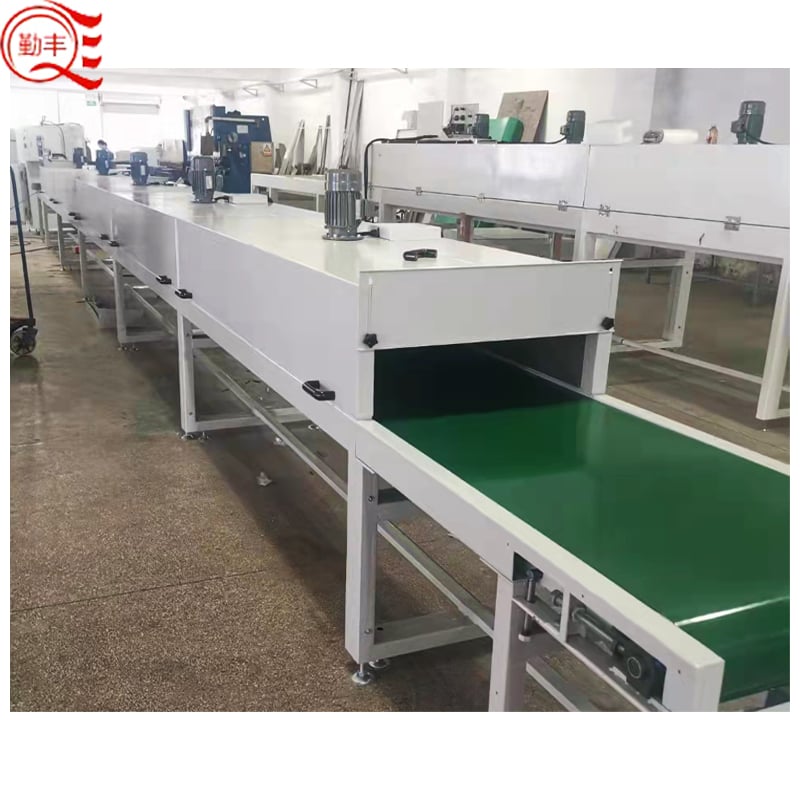

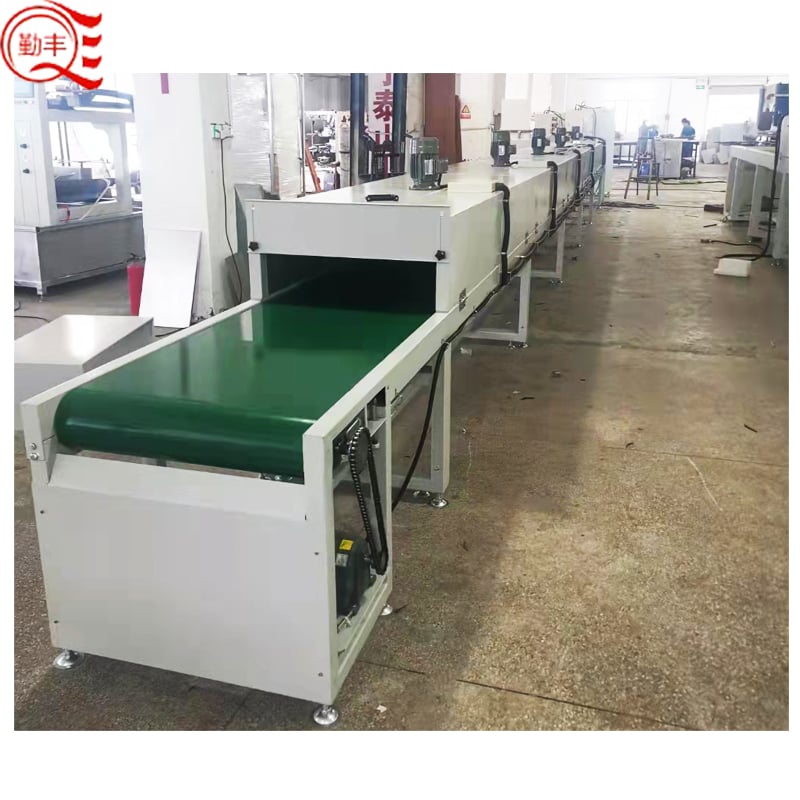

Product Pictures:
Tunnel Furnace Application:
Tunnel furnace the equipment is widely used in electronics, plastics, flooring, textiles, food, coating, electroplating, chemical, leather, woodworking, paper products, shoemaking, medicine, hardware printing, mobile phone assembly, semiconductor and other industries.It can be seen that the operation of tunnel furnace equipment is widely used in these fields. However, tunnel furnace equipment is widely used in the production of dispensing line for electronic components, inductor dispensing, capacitor dispensing, PCB board sealing, network transformer dispensing, arts and crafts dispensing, LED dispensing and painting industry
Shenzhen Xinqinfeng industrial equipment co., LTD. was established in 2004.The products are sold to various regions of mainland China and foreign countries.From a development department,Xinqinfeng has become a professional manufacturers which currently specializing in non-standard automatic mechanical Equipment’s development, design and production, with standard large plant and advanced production equipment.After years of unremitting efforts and accumulation, Now Xinqinfeng specializes in industrial automation equipment with considerable scale and strength.
Main products include industry surface automatic painting, automatic drying, as well as automatic spraying the entire plant planning, designing and manufacturing, as well as industrial robots, robots, automation equipment and other non-standard test equipment.
Main Products:
4.Q: What is price of the machine?
Answer: Normally, Most of the machine is customized for our customer. If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please send us the detail infos about your workpiece as blow:
1. The maximum size of workpiece:
2. The material of workpiece:
3. The drying temperature:
4. The drying time:
Our Service
Pre-sales:
1. Offer professional advice and provide the best solution for the customer
2. According to customer's needs or requirements, Our engineer will offer the drawing and solution for you.
3. We will offer the competitive price according to the customer's solution
After-sales:
1. We will send the engineers for onsite installation, commissioning and operation training.
2. We will provide fault handing service and lifetime warranty.
3. We provide 1 year warranty for each machine.
4. We will contact you back periodically to learn machine conditions.
5. We also provide the service for further extension on your existing machine
Appreciating for your support, if you can send us some pics with product size and capacity for reference. Once get your infos, We will send you our solution with price ASAP.
