The Xinqinfeng Spray Booth Water Curtain Machine will be the solution this is certainly perfect keeping your work place neat and free of harmful chemical substances. Made with durability and simplicity at heart, this product is merely a must-have for almost any environment this is certainly commercial.
The Xinqinfeng Spray Booth Water Curtain Machine makes it simple to contain and eliminate any overspray from your paint sprayers having its water curtain design. This not simply keeps your projects area clean and also really helps you to avoid any chemical substances and this can be harmful escaping into the atmosphere.
What sets this machine in addition to others available on the market is its ease of use. The Xinqinfeng Spray Booth Water Curtain Machine was created to be an easy task to run, with intuitive settings that enable one to adjust the settings to fit your needs being unique. In addition, it really is developed to withstand possibly the demanding that is many that are industrial with heavy-duty construction materials that ensure it can manage perhaps the most challenging jobs.
The Xinqinfeng Spray Booth Water Curtain Machine normally extremely versatile in addition to its impressive performance. It may be utilized when it comes to variety of applications, including artwork this is certainly automotive commercial coatings, and more. Whatever your requirements, this revolutionary product is assured to offer the outcomes that are total are considering.
But most likely the thing that is way better with regards to the Xinqinfeng Spray Booth Water Curtain Machine is its price that is affordable point. This product is interestingly affordable, that makes it accessible to businesses of all of the sizes and spending plans despite its robust features and performance that is impressive.
Product Description
Production Features:
Environmental protection type water curtain ark (spray paint stage) basically be to pump water to go up to water curtain board to flow down equably by self-priming pump, the waste gas that spray gun gush comes out (lacquer mist) by the water on water curtain board hits in the pool below.A small part of the exhaust gas (paint fog) is above the fan through the exhaust pipe exhaust outside the workshop.There is no waste gas (paint fog) in the workshop to give everyone a good working environment.
Use and performance
Mainly used for product spray paint workshop exhaust (paint fog) treatment, to give everyone a good working environment. High efficiency environmental protection water curtain cabinet (spray paint station) mainly USES the water to filter the exhaust gas of the spray paint workshop (paint fog) to use conveniently and save energy. Pass water to hit exhaust gas (lacquer) drain inside, change water regularly
Parameter List
No. |
Item |
Specification |
|
1 |
Size |
W2000mm(inner width)x D2000mm x H2500mm |
|
2 |
cabinet
|
Water Tank
|
The water tank is welded by 1.5mm 202# stainless plate, Full welding. |
The foot stool for water tank |
It is made of welding 50x50 stainless steel square box section. The M14 adjustable foot cup is equipped in the bottom of foot stool. |
||
The top and side plate |
It is made by bending and welding 1.2mm 202# stainless steel sheets. They are connected by the stainless steel screw and the gap is filled by the glass cement. |
||
The rear of the plate |
It is made by bending and welding 1.2mm 202# stainless steel sheets. |
||
Water Curtain Plate |
It is made by 1.0mm 202# stainless steel sheets. |
||
3 |
water-cycling system |
Water Pump |
Use 1 set 1HP vertical centrifugal water pump. |
Pipeline |
The water pipe is made of 1.2 inch PVC pipe. The main and secondary water pipe are equipped with the valve. |
||
4 |
exhaust gas system |
Wind turbines |
It use 1 set of 3P special centrifugal fan for water booth. The air volume is 8500 cubic meters per hours.(not included) |
Air Pipe |
The air pipe is not included. |
||
5 |
electrical equipment |
Electric Control Cabinet |
A set of Electricity box, not including the frequency transformer, The accessory use the China CHINT brand which is famous in our country. |
Lighting |
The light use 1 pc 40W explosive-proof light with cover. |

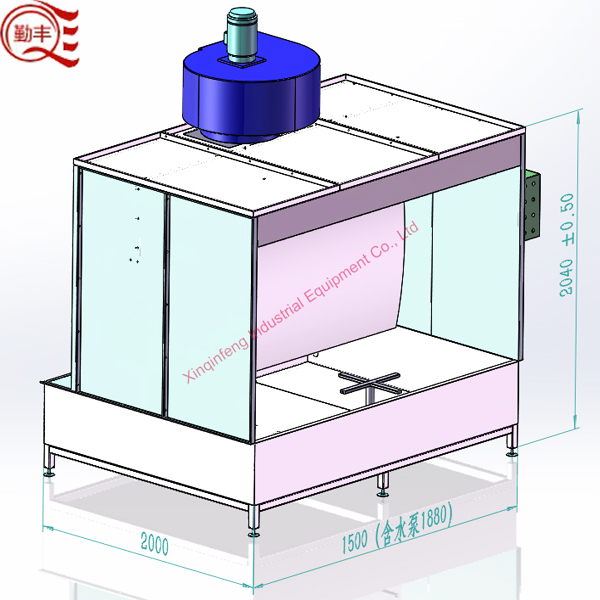

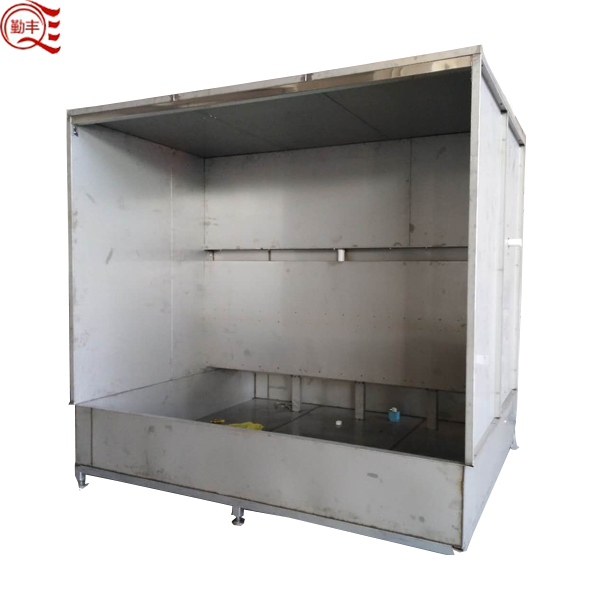

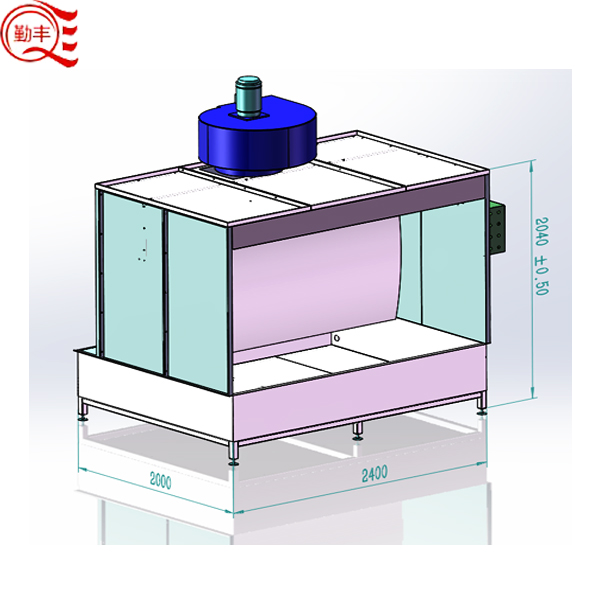

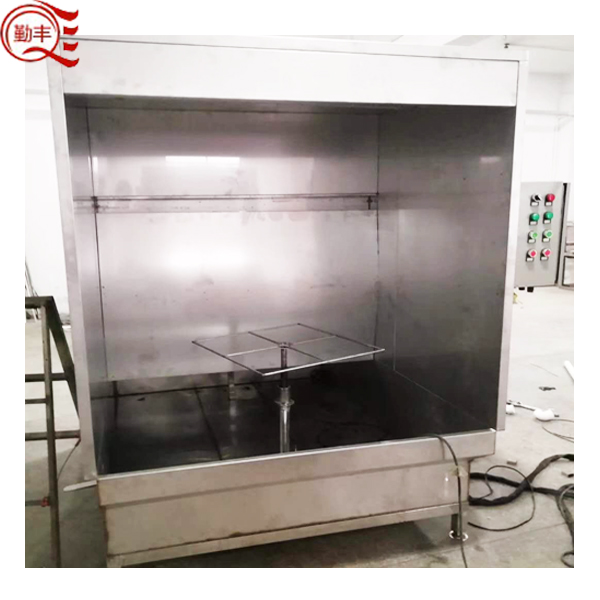

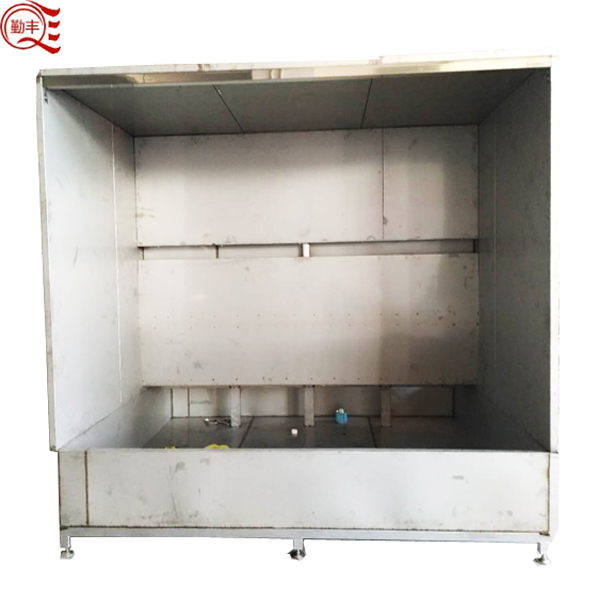

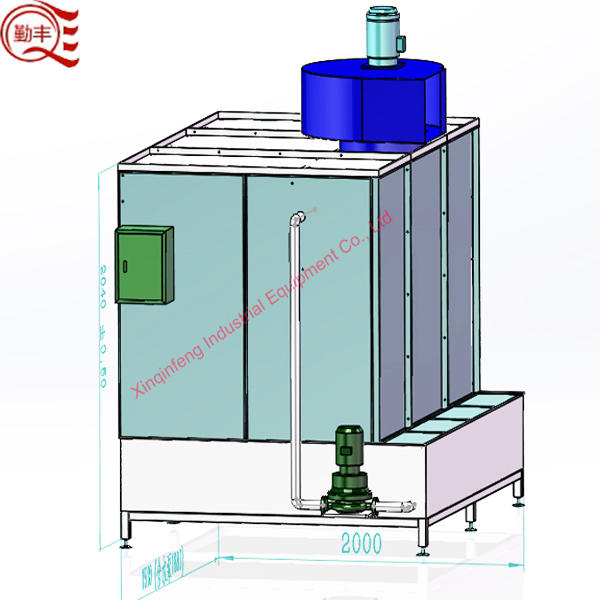

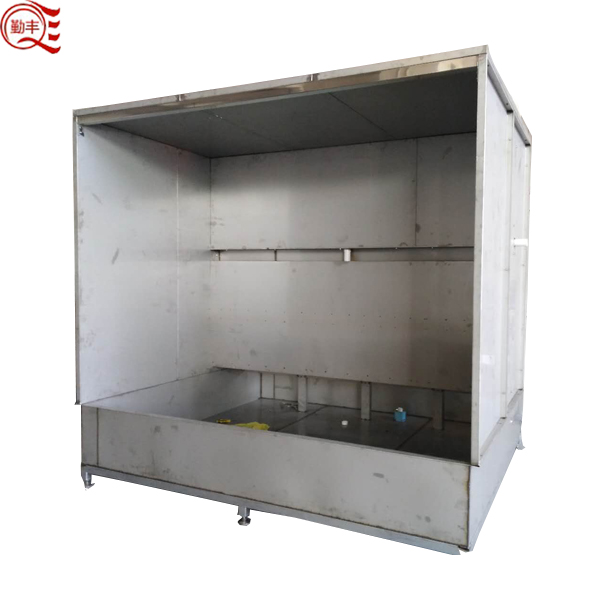

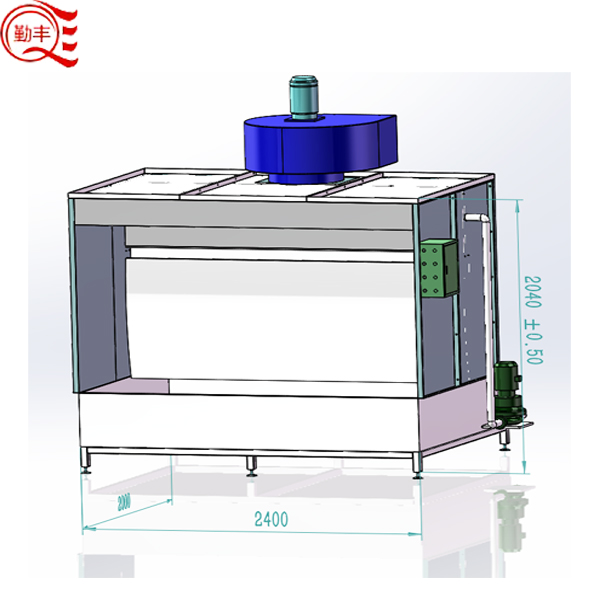

Product Show:
Application:
The paint booth has water curtain spraying booth and dry-type spray paint booth, which is used to exhaust the extra mist for manual spraying and automatic spraying paint machine's spraying. it is wildly used in the field of plastic, Metal, stainless, glass, wood etc. round, cylindrical, conical shapes or other irregular, small type shapes' surface spraying, such as cellphone shell, glass cup, lamp shell, helmet, bottles, holder, cosmetics lid etc. project.
Application:
The paint booth has water curtain spraying booth and dry-type spray paint booth, which is used to exhaust the extra mist for manuap spraying and automatic spraying paint machine's spraying. it is wildly used in the field of plastic,Metal,stainless,glass,wood etc round,cylindrical,conical shapes or other irregular ,small type shapes' furface spraying,such as cellphone shell,glass cup, lamp shell,helmet,bottles,holder,cosmetics lid etc project.
